Kubernetes AWS ALB/NLB 구성 yaml

1. AWS ALB Ingress 구성

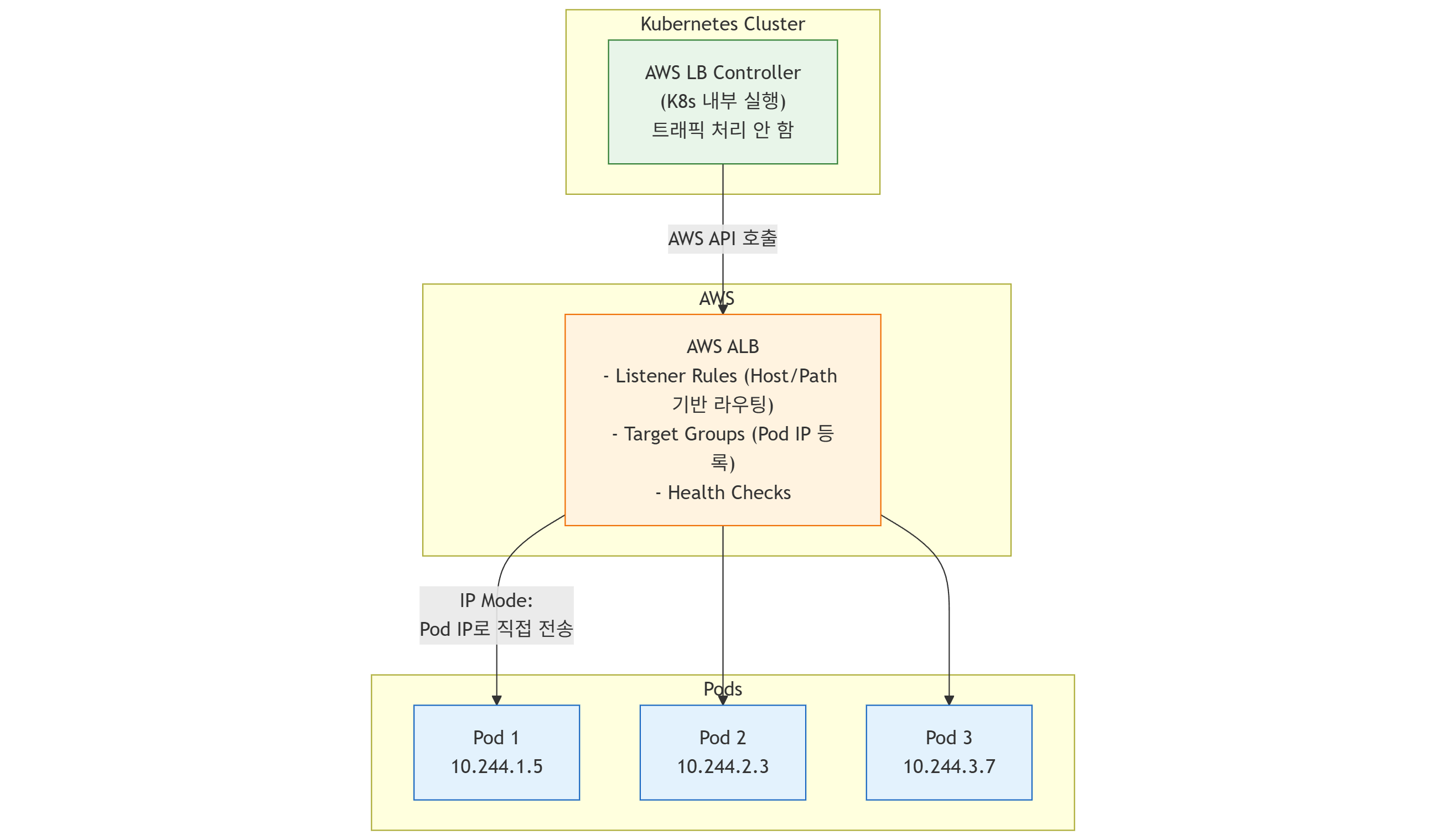

1.1 아키텍처 개요

특징

✅ hostNetwork 불필요

✅ externalTrafficPolicy 무관 (Service 안 거침)

✅ Source IP: X-Forwarded-For 헤더로 전달

1.2 Target Type 비교

IP Mode (기본/권장)

alb.ingress.kubernetes.io/target-type: ip

ALB → Pod IP 직접
      (Service 거치지 않음)

항목	설명
트래픽 경로	ALB → Pod IP 직접
Service 타입	ClusterIP로 충분
hostNetwork	불필요
externalTrafficPolicy	무관
요구사항	AWS VPC CNI (Pod가 VPC IP 사용)

Instance Mode

alb.ingress.kubernetes.io/target-type: instance

ALB → Node (NodePort) → kube-proxy → Pod

항목	설명
트래픽 경로	ALB → NodePort → Pod
Service 타입	NodePort 필수
externalTrafficPolicy	Local 설정 시 Source IP 보존
요구사항	Security Group에서 NodePort 허용

1.3 Service의 역할 (IP Mode)

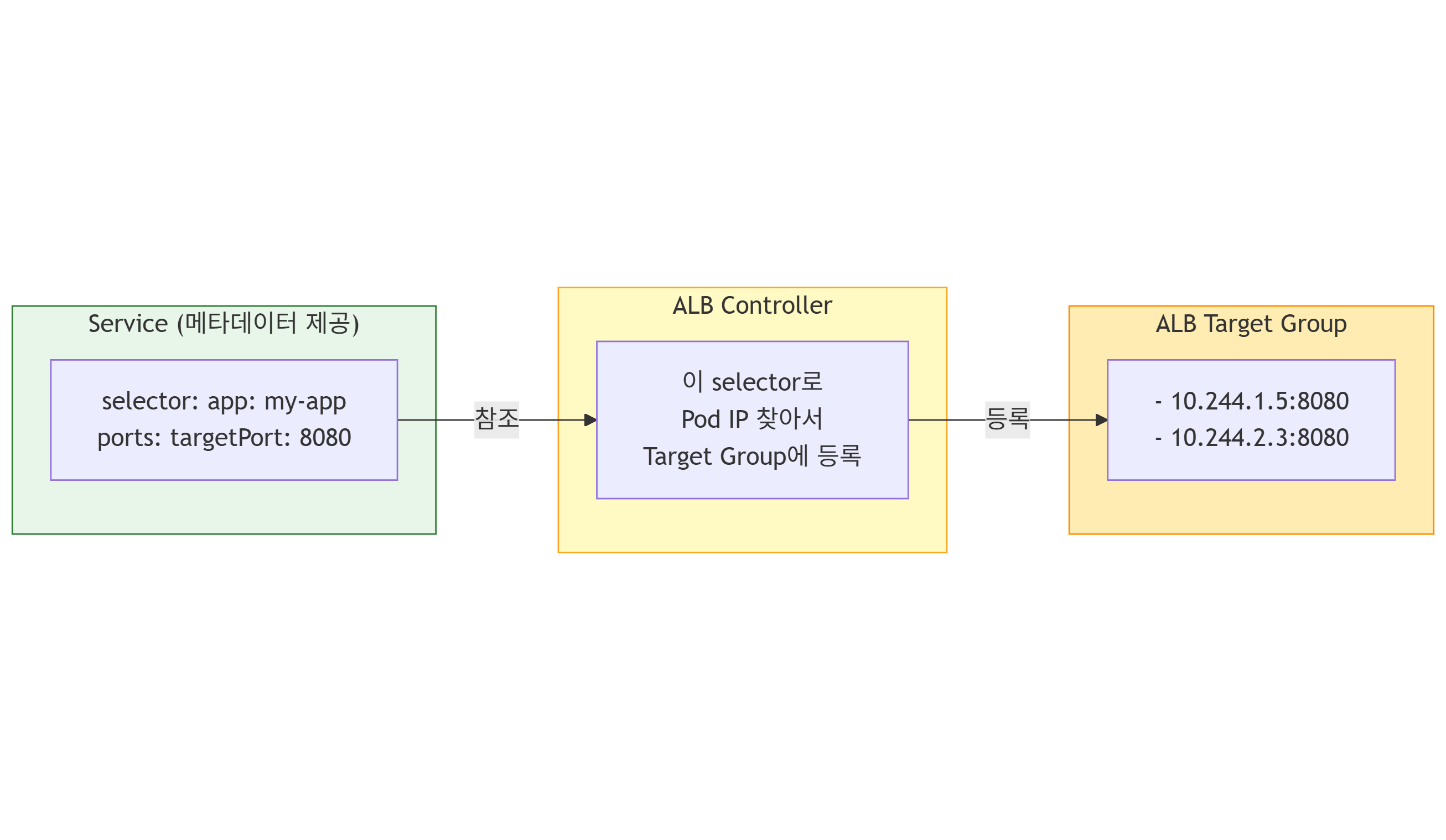

Service는 필수이지만 트래픽 라우팅에 사용되지 않음:

핵심: 실제 트래픽은 ALB → Pod (Service 거치지 않음)

1.4 ALB Ingress 전체 구성

# 1. Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-app
  namespace: default
spec:
  replicas: 3
  selector:
    matchLabels:
      app: my-app
  template:
    metadata:
      labels:
        app: my-app
    spec:
      containers:
      - name: app
        image: nginx:latest
        ports:
        - containerPort: 80
        resources:
          requests:
            cpu: 100m
            memory: 128Mi
          limits:
            cpu: 200m
            memory: 256Mi

---
# 2. Service (Pod 선택자 역할)
apiVersion: v1
kind: Service
metadata:
  name: my-app-svc
  namespace: default
spec:
  type: ClusterIP          # IP mode에서는 ClusterIP로 충분
  selector:
    app: my-app
  ports:
  - port: 80
    targetPort: 80
    protocol: TCP

---
# 3. Ingress (ALB 생성)
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: my-app-ingress
  namespace: default
  annotations:
    # ALB 기본 설정
    alb.ingress.kubernetes.io/scheme: internet-facing        # 또는 internal
    alb.ingress.kubernetes.io/target-type: ip                # 권장

    # SSL/TLS 설정
    alb.ingress.kubernetes.io/listen-ports: '[{"HTTP": 80}, {"HTTPS": 443}]'
    alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:ap-northeast-2:123456789:certificate/xxx
    alb.ingress.kubernetes.io/ssl-policy: ELBSecurityPolicy-TLS13-1-2-2021-06

    # Health Check 설정
    alb.ingress.kubernetes.io/healthcheck-path: /health
    alb.ingress.kubernetes.io/healthcheck-interval-seconds: "15"
    alb.ingress.kubernetes.io/healthcheck-timeout-seconds: "5"
    alb.ingress.kubernetes.io/healthy-threshold-count: "2"
    alb.ingress.kubernetes.io/unhealthy-threshold-count: "2"

    # 추가 설정
    alb.ingress.kubernetes.io/load-balancer-name: my-app-alb
    alb.ingress.kubernetes.io/tags: Environment=production,Team=backend
    alb.ingress.kubernetes.io/group.name: shared-alb         # ALB 공유 시
spec:
  ingressClassName: alb
  rules:
  - host: api.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: my-app-svc
            port:
              number: 80

1.5 주요 Annotations

Scheme (공개/내부)

# Internet-facing (외부 공개)
alb.ingress.kubernetes.io/scheme: internet-facing

# Internal (VPC 내부만)
alb.ingress.kubernetes.io/scheme: internal

Target Type

# IP Mode (권장) - Pod IP 직접
alb.ingress.kubernetes.io/target-type: ip

# Instance Mode - NodePort 경유
alb.ingress.kubernetes.io/target-type: instance

SSL/TLS

alb.ingress.kubernetes.io/listen-ports: '[{"HTTP": 80}, {"HTTPS": 443}]'
alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:region:account:certificate/cert-id
alb.ingress.kubernetes.io/ssl-policy: ELBSecurityPolicy-TLS13-1-2-2021-06

# ⚠️ HTTP → HTTPS 리다이렉트 (주의: 공유 ALB에서 문제 발생 가능)
# alb.ingress.kubernetes.io/ssl-redirect: "443"  # 권장하지 않음

Health Check

alb.ingress.kubernetes.io/healthcheck-path: /health
alb.ingress.kubernetes.io/healthcheck-port: traffic-port
alb.ingress.kubernetes.io/healthcheck-protocol: HTTP
alb.ingress.kubernetes.io/healthcheck-interval-seconds: "15"
alb.ingress.kubernetes.io/healthcheck-timeout-seconds: "5"
alb.ingress.kubernetes.io/healthy-threshold-count: "2"
alb.ingress.kubernetes.io/unhealthy-threshold-count: "2"
alb.ingress.kubernetes.io/success-codes: "200-299"

ALB 공유 (Group)

# 같은 group.name을 가진 Ingress들은 하나의 ALB 공유
alb.ingress.kubernetes.io/group.name: shared-alb
alb.ingress.kubernetes.io/group.order: "10"  # 규칙 우선순위

기타

# Idle Timeout
alb.ingress.kubernetes.io/load-balancer-attributes: idle_timeout.timeout_seconds=60

# WAF 연동
alb.ingress.kubernetes.io/wafv2-acl-arn: arn:aws:wafv2:...

# Access Log
alb.ingress.kubernetes.io/load-balancer-attributes: access_logs.s3.enabled=true,access_logs.s3.bucket=my-bucket

# Security Group
alb.ingress.kubernetes.io/security-groups: sg-xxx,sg-yyy
alb.ingress.kubernetes.io/manage-backend-security-group-rules: "true"

1.6 Source IP 확인 방법

ALB는 X-Forwarded-For 헤더로 클라이언트 IP 전달:

# Python/Flask
from flask import request

client_ip = request.headers.get('X-Forwarded-For', '').split(',')[0].strip()

// Node.js/Express
app.set('trust proxy', true);
const clientIP = req.ip;

// Go
clientIP := strings.Split(r.Header.Get("X-Forwarded-For"), ",")[0]

2. AWS NLB Service 구성

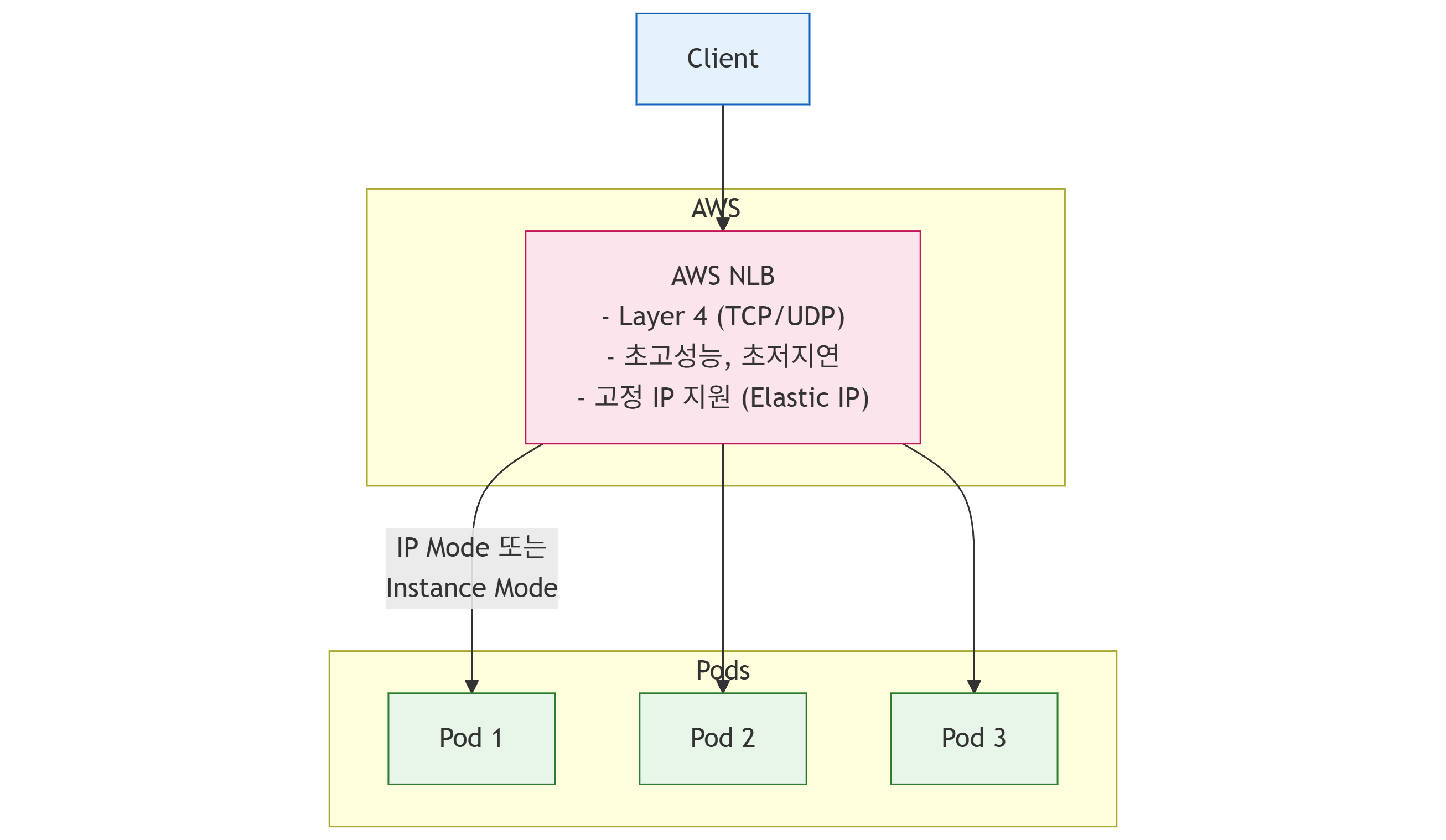

2.1 아키텍처 개요

2.2 NLB 기본 구성 (IP Mode)

apiVersion: v1
kind: Service
metadata:
  name: my-nlb-service
  namespace: default
  annotations:
    # NLB 타입 지정
    service.beta.kubernetes.io/aws-load-balancer-type: external
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip  # 권장

    # Scheme
    service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing

    # 이름 및 태그
    service.beta.kubernetes.io/aws-load-balancer-name: my-nlb
    service.beta.kubernetes.io/aws-load-balancer-additional-resource-tags: Environment=prod
spec:
  type: LoadBalancer
  selector:
    app: my-app
  ports:
  - port: 443
    targetPort: 8443
    protocol: TCP

2.3 NLB Instance Mode (Source IP 보존)

apiVersion: v1
kind: Service
metadata:
  name: my-nlb-service
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: external
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: instance
    service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing
spec:
  type: LoadBalancer
  externalTrafficPolicy: Local      # Source IP 보존
  selector:
    app: my-app
  ports:
  - port: 443
    targetPort: 8443
    protocol: TCP

2.4 NLB + TLS Termination

apiVersion: v1
kind: Service
metadata:
  name: my-nlb-tls
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: external
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip
    service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing

    # TLS 설정
    service.beta.kubernetes.io/aws-load-balancer-ssl-cert: arn:aws:acm:region:account:certificate/cert-id
    service.beta.kubernetes.io/aws-load-balancer-ssl-ports: "443"
    service.beta.kubernetes.io/aws-load-balancer-ssl-negotiation-policy: ELBSecurityPolicy-TLS13-1-2-2021-06
spec:
  type: LoadBalancer
  selector:
    app: my-app
  ports:
  - name: https
    port: 443
    targetPort: 8080        # TLS 종료 후 HTTP로 전달
    protocol: TCP

2.5 NLB 고정 IP (Elastic IP)

apiVersion: v1
kind: Service
metadata:
  name: my-nlb-eip
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: external
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip
    service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing

    # Elastic IP 할당
    service.beta.kubernetes.io/aws-load-balancer-eip-allocations: eipalloc-xxx,eipalloc-yyy
spec:
  type: LoadBalancer
  selector:
    app: my-app
  ports:
  - port: 443
    targetPort: 8443
    protocol: TCP

2.6 NLB Internal (VPC 내부)

apiVersion: v1
kind: Service
metadata:
  name: my-internal-nlb
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: external
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip
    service.beta.kubernetes.io/aws-load-balancer-scheme: internal

    # Private Subnet 지정
    service.beta.kubernetes.io/aws-load-balancer-subnets: subnet-xxx,subnet-yyy
spec:
  type: LoadBalancer
  selector:
    app: my-app
  ports:
  - port: 80
    targetPort: 8080
    protocol: TCP

2.7 NLB 주요 Annotations

기본 설정

# NLB 타입 (필수)
service.beta.kubernetes.io/aws-load-balancer-type: external

# Target Type
service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip       # 권장
service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: instance

# Scheme
service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing
service.beta.kubernetes.io/aws-load-balancer-scheme: internal

Health Check

service.beta.kubernetes.io/aws-load-balancer-healthcheck-protocol: HTTP
service.beta.kubernetes.io/aws-load-balancer-healthcheck-port: "8080"
service.beta.kubernetes.io/aws-load-balancer-healthcheck-path: /health
service.beta.kubernetes.io/aws-load-balancer-healthcheck-interval: "10"
service.beta.kubernetes.io/aws-load-balancer-healthcheck-timeout: "5"
service.beta.kubernetes.io/aws-load-balancer-healthcheck-healthy-threshold: "2"
service.beta.kubernetes.io/aws-load-balancer-healthcheck-unhealthy-threshold: "2"

네트워크

# Subnet 지정
service.beta.kubernetes.io/aws-load-balancer-subnets: subnet-xxx,subnet-yyy

# Security Group
service.beta.kubernetes.io/aws-load-balancer-security-groups: sg-xxx

# Cross-Zone Load Balancing
service.beta.kubernetes.io/aws-load-balancer-attributes: load_balancing.cross_zone.enabled=true

# Proxy Protocol v2 (Source IP 보존 - Instance Mode)
service.beta.kubernetes.io/aws-load-balancer-proxy-protocol: "*"

Access Log

service.beta.kubernetes.io/aws-load-balancer-access-log-enabled: "true"
service.beta.kubernetes.io/aws-load-balancer-access-log-s3-bucket-name: my-bucket
service.beta.kubernetes.io/aws-load-balancer-access-log-s3-bucket-prefix: nlb-logs

2.8 NLB Source IP 보존

IP Mode (기본 보존)

# IP Mode에서는 기본적으로 Source IP 보존됨
service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip

Pod에서 직접 클라이언트 IP 확인 가능 (TCP 소켓에서).

Instance Mode + Proxy Protocol

# Instance Mode에서 Source IP 보존하려면 Proxy Protocol 필요
service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: instance
service.beta.kubernetes.io/aws-load-balancer-proxy-protocol: "*"

⚠️ 애플리케이션이 Proxy Protocol v2를 지원해야 함.

3. ALB vs NLB 비교

3.1 기본 비교

항목	ALB	NLB
OSI 계층	Layer 7 (HTTP/HTTPS)	Layer 4 (TCP/UDP/TLS)
프로토콜	HTTP, HTTPS, gRPC	TCP, UDP, TLS
라우팅	Host/Path 기반	포트 기반
성능	높음	매우 높음 (초저지연)
고정 IP	❌ (DNS만)	✅ (Elastic IP 지원)
WebSocket	✅	✅
SSL 종료	✅	✅
HTTP 헤더 접근	✅	❌

3.2 Kubernetes 구성 비교

항목	ALB	NLB
K8s 리소스	Ingress	Service (type: LoadBalancer)
Controller	AWS Load Balancer Controller	AWS Load Balancer Controller
Target Type	ip (권장), instance	ip (권장), instance
hostNetwork	불필요	불필요
externalTrafficPolicy	IP mode: 무관	IP mode: 무관
Source IP	X-Forwarded-For 헤더	직접 보존 (IP mode)

3.3 사용 사례

사용 사례	권장
HTTP/HTTPS API	ALB
마이크로서비스 라우팅	ALB
gRPC 서비스	ALB
WebSocket	ALB 또는 NLB
TCP/UDP 서비스	NLB
게임 서버	NLB
IoT (MQTT)	NLB
고정 IP 필요	NLB
초저지연 필요	NLB
VPN/프록시	NLB

3.4 트래픽 흐름 비교

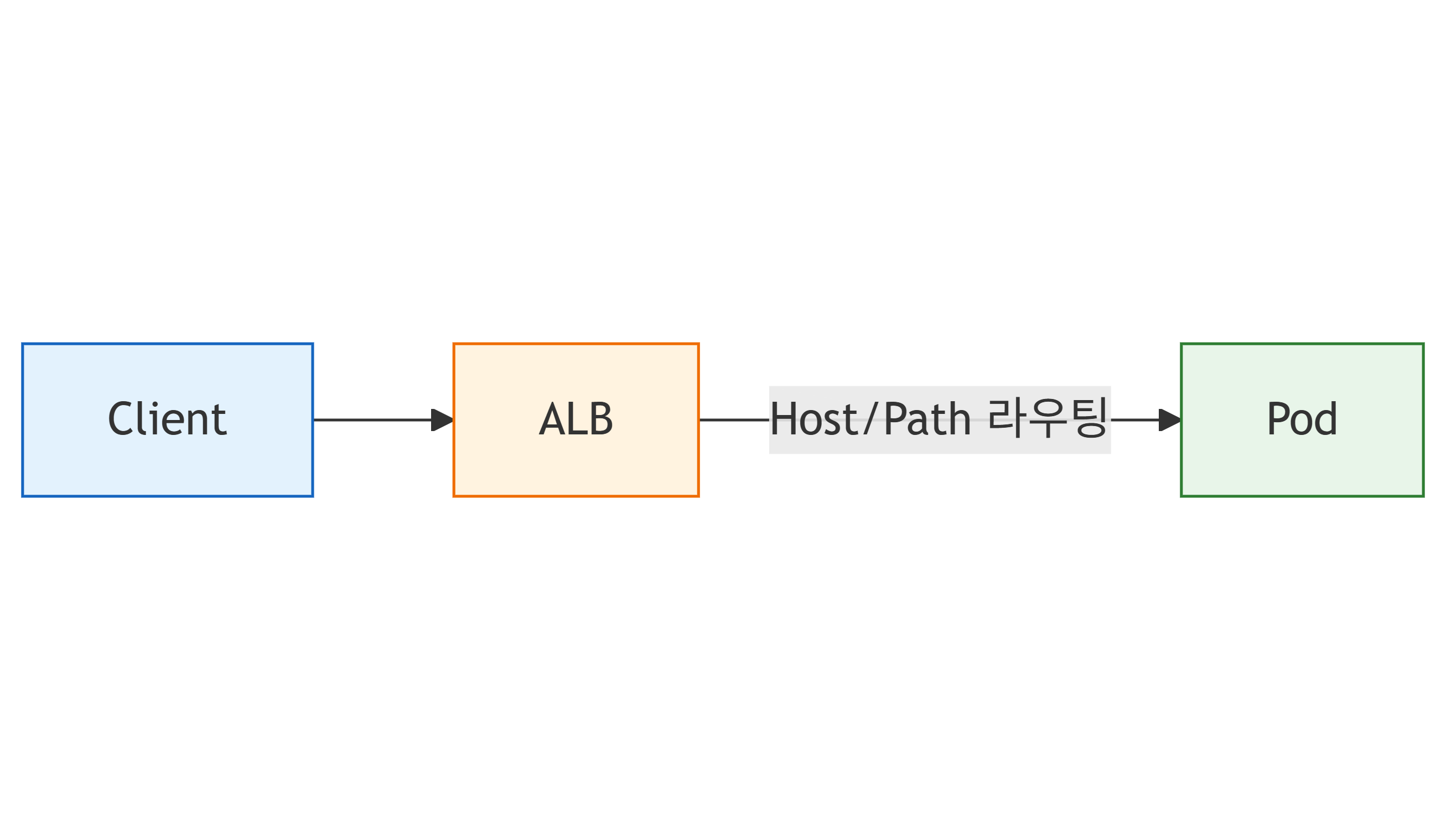

ALB (IP Mode)

Source IP: X-Forwarded-For 헤더로 전달

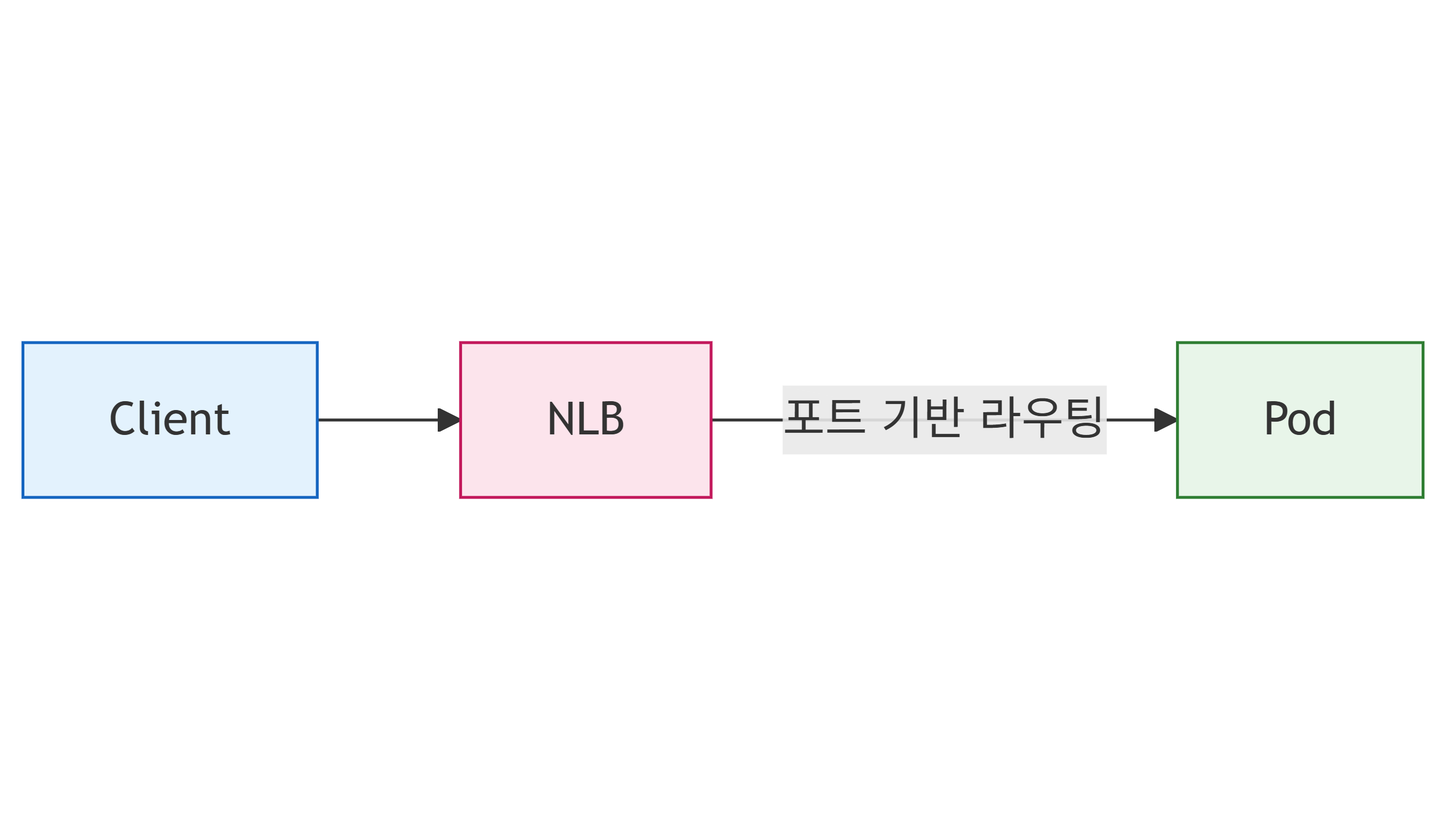

NLB (IP Mode)

Source IP: 직접 보존 (TCP 소켓에서 확인 가능)

4. 실전 구성 예시

4.1 웹 애플리케이션 (ALB)

# Frontend + Backend 분리 구성
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: web-app-ingress
  annotations:
    alb.ingress.kubernetes.io/scheme: internet-facing
    alb.ingress.kubernetes.io/target-type: ip
    alb.ingress.kubernetes.io/listen-ports: '[{"HTTP": 80}, {"HTTPS": 443}]'
    alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:...
    alb.ingress.kubernetes.io/group.name: web-alb
spec:
  ingressClassName: alb
  rules:
  # Frontend
  - host: www.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: frontend-svc
            port:
              number: 80
  # API Backend
  - host: api.example.com
    http:
      paths:
      - path: /v1
        pathType: Prefix
        backend:
          service:
            name: api-v1-svc
            port:
              number: 80
      - path: /v2
        pathType: Prefix
        backend:
          service:
            name: api-v2-svc
            port:
              number: 80

4.2 gRPC 서비스 (ALB)

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: grpc-ingress
  annotations:
    alb.ingress.kubernetes.io/scheme: internet-facing
    alb.ingress.kubernetes.io/target-type: ip
    alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS": 443}]'
    alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:...
    alb.ingress.kubernetes.io/backend-protocol-version: GRPC
    alb.ingress.kubernetes.io/healthcheck-protocol: HTTP
    alb.ingress.kubernetes.io/healthcheck-path: /grpc.health.v1.Health/Check
spec:
  ingressClassName: alb
  rules:
  - host: grpc.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: grpc-svc
            port:
              number: 50051

4.3 TCP 서비스 (NLB)

# Redis, Database 등 TCP 서비스
apiVersion: v1
kind: Service
metadata:
  name: redis-nlb
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: external
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip
    service.beta.kubernetes.io/aws-load-balancer-scheme: internal
spec:
  type: LoadBalancer
  selector:
    app: redis
  ports:
  - port: 6379
    targetPort: 6379
    protocol: TCP

4.4 고정 IP 필요 서비스 (NLB + EIP)

# 외부 연동 시 IP 화이트리스트가 필요한 경우
apiVersion: v1
kind: Service
metadata:
  name: external-api
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: external
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip
    service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing
    service.beta.kubernetes.io/aws-load-balancer-eip-allocations: eipalloc-xxx,eipalloc-yyy
spec:
  type: LoadBalancer
  selector:
    app: external-api
  ports:
  - port: 443
    targetPort: 8443
    protocol: TCP

4.5 Internal 서비스 (ALB + NLB 혼합)

# Internal ALB - HTTP 서비스
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: internal-api
  annotations:
    alb.ingress.kubernetes.io/scheme: internal
    alb.ingress.kubernetes.io/target-type: ip
spec:
  ingressClassName: alb
  rules:
  - host: internal-api.corp.local
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: internal-api-svc
            port:
              number: 80

---
# Internal NLB - TCP 서비스
apiVersion: v1
kind: Service
metadata:
  name: internal-db
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: external
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip
    service.beta.kubernetes.io/aws-load-balancer-scheme: internal
spec:
  type: LoadBalancer
  selector:
    app: database
  ports:
  - port: 5432
    targetPort: 5432
    protocol: TCP

4.6 다중 포트 NLB (게임 서버)

apiVersion: v1
kind: Service
metadata:
  name: game-server
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: external
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip
    service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing
    service.beta.kubernetes.io/aws-load-balancer-eip-allocations: eipalloc-xxx
spec:
  type: LoadBalancer
  selector:
    app: game-server
  ports:
  - name: tcp-game
    port: 7777
    targetPort: 7777
    protocol: TCP
  - name: udp-voice
    port: 7778
    targetPort: 7778
    protocol: UDP

5. 요약

5.1 hostNetwork & externalTrafficPolicy 필요 여부

구성	hostNetwork	externalTrafficPolicy
ALB + IP mode	❌ 불필요	❌ 무관
ALB + Instance mode	❌ 불필요	Local (Source IP 보존 시)
NLB + IP mode	❌ 불필요	❌ 무관
NLB + Instance mode	❌ 불필요	Local (Source IP 보존 시)

5.2 Source IP 보존 방법

LB 타입	Target Type	Source IP 확인 방법
ALB	IP	X-Forwarded-For 헤더
ALB	Instance + Local	X-Forwarded-For 헤더
NLB	IP	직접 보존 (TCP 소켓에서)
NLB	Instance + Proxy Protocol	Proxy Protocol 파싱

5.3 권장 구성

요구사항	권장 구성
HTTP/HTTPS API	ALB + IP mode
마이크로서비스	ALB + IP mode + group.name (ALB 공유)
gRPC	ALB + IP mode + GRPC backend protocol
TCP/UDP 서비스	NLB + IP mode
고정 IP 필요	NLB + EIP
초저지연	NLB + IP mode
복잡한 라우팅	ALB (Host/Path 기반)

5.4 Annotations Quick Reference

ALB 필수

alb.ingress.kubernetes.io/scheme: internet-facing | internal
alb.ingress.kubernetes.io/target-type: ip
alb.ingress.kubernetes.io/listen-ports: '[{"HTTP": 80}, {"HTTPS": 443}]'
alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:...

NLB 필수

service.beta.kubernetes.io/aws-load-balancer-type: external
service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip
service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing | internal

'K8S' 카테고리의 다른 글

Kubernetes hostNetwork & externalTrafficPolicy - AWS ALB, NLB 에서 사용하는가? (0)	2026.01.26
Kubernetes Windows 지원: 기능 비교와 스케줄링 방식 정리 (0)	2026.01.23
쿠버네티스 캐스케이딩 삭제(Cascading Deletion) (0)	2026.01.22
Kubernetes는 가상화 도구인가? (0)	2026.01.22
Kubernetes에서 Stateful 앱에 Blue-Green 배포를 적용할 수 있을까? (0)	2026.01.19

Kubernetes AWS ALB/NLB 구성 yaml

1. AWS ALB Ingress 구성

1.1 아키텍처 개요

1.2 Target Type 비교

IP Mode (기본/권장)

Instance Mode

1.3 Service의 역할 (IP Mode)

1.4 ALB Ingress 전체 구성

1.5 주요 Annotations

Scheme (공개/내부)

Target Type

SSL/TLS

Health Check

ALB 공유 (Group)

기타

1.6 Source IP 확인 방법

2. AWS NLB Service 구성

2.1 아키텍처 개요

2.2 NLB 기본 구성 (IP Mode)

2.3 NLB Instance Mode (Source IP 보존)

2.4 NLB + TLS Termination

2.5 NLB 고정 IP (Elastic IP)

2.6 NLB Internal (VPC 내부)

2.7 NLB 주요 Annotations

기본 설정

Health Check

네트워크

Access Log

2.8 NLB Source IP 보존

IP Mode (기본 보존)

Instance Mode + Proxy Protocol

3. ALB vs NLB 비교

3.1 기본 비교

3.2 Kubernetes 구성 비교

3.3 사용 사례

3.4 트래픽 흐름 비교

ALB (IP Mode)

NLB (IP Mode)

4. 실전 구성 예시

4.1 웹 애플리케이션 (ALB)

4.2 gRPC 서비스 (ALB)

4.3 TCP 서비스 (NLB)

4.4 고정 IP 필요 서비스 (NLB + EIP)

4.5 Internal 서비스 (ALB + NLB 혼합)

4.6 다중 포트 NLB (게임 서버)

5. 요약

5.1 hostNetwork & externalTrafficPolicy 필요 여부

5.2 Source IP 보존 방법

5.3 권장 구성

5.4 Annotations Quick Reference

ALB 필수

NLB 필수

'K8S' 카테고리의 다른 글

관련글

댓글

티스토리툴바
